Other Medical Devices – Essential Solutions for Healthcare

Medical Carts / Hospital Trolleys

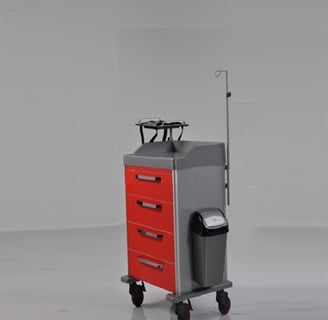

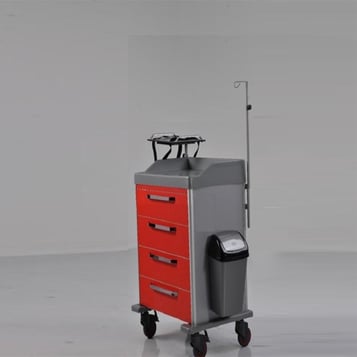

The TTM-ACL-E10 Emergency Response Cart by TETRAMED features a central locking mechanism, ABS top tray (480×680 mm), 18 mm melamine body (680×850 mm) with aluminum edge trims, and a chassis made of 18 mm melamine (680×850 mm); it has four drawers with internal compartments in the first three (400×600×50 mm for the first, 400×600×100 mm for the second and third, and 400×600×200 mm for the fourth without compartments), a braking system with front two-wheel brakes, dimensions of 870×540×1450 mm, and four 100 mm wheels; additional features include a chrome-plated adjustable IV pole with a single hook (Ø19 1.2 mm outer tube, Ø13 1.2 mm inner tube), an 8 mm MDF laminate defibrillator shelf (280×380 mm), a 5 mm metal wire oxygen cylinder holder (5L capacity), an MDF laminate resuscitation board (330×590 mm), a waste bin, a drawer frame made of 20×20×1.2 mm electrostatic powder-coated profile, and telescopic drawer rails for smooth operation.

TTM ACL E10 Emergency Response Cart

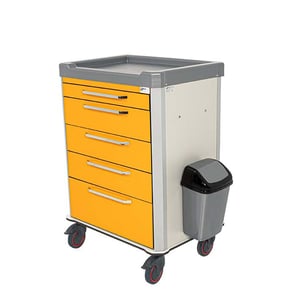

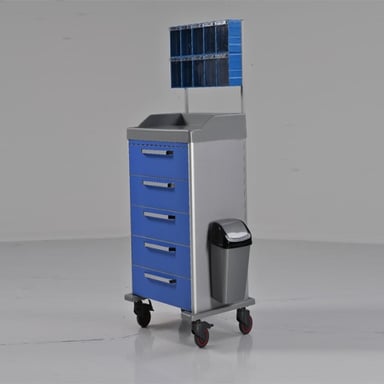

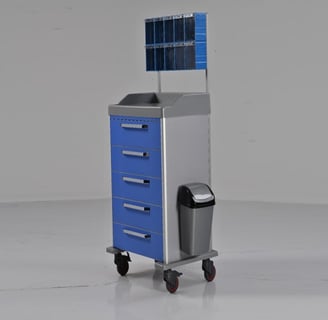

TTM-ITA-P30 Medication Cart

The TTM-ITA-P30 Medication Cart by TETRAMED is designed for efficient medication storage and transport in healthcare settings. It features a central locking mechanism, an ABS top tray (480×680 mm), a body made of 18 mm melamine (680×850 mm) with aluminum edge trims, and a chassis also made of 18 mm melamine (680×850 mm). The cart includes five drawers, each with four compartments (Drawer 1: 400×600×50 mm, Drawers 2-5: 400×600×100 mm), and a polycarbonate medication storage compartment with 10 sections. The cart has no narcotic drug compartment, but it includes a removable plastic waste bin (190×240×380 mm). It is equipped with a braking system with front two-wheel brakes, four 100 mm wheels, and measures 870×540×1580 mm. Additional features include a drawer frame made of 20×20×1.2 mm electrostatic powder-coated profile and telescopic drawer rails for smooth operation.

Medication Cart Group / Drug Trolley Group

• Antibacterial ABS material top tray
• Drawers with telescopic rails
• Specially designed body with melamine drawers
• Internal frame system made of DKP profile with electrostatic powder coating
• HPL (Compact) defibrillator stand
• Resuscitation stand
• IV pole
• Four caster wheels, two with brakes
• Waste bin

Emergency Response Cart

Medication Storage Cart

• Antibacterial ABS material top tray
• Drawers with telescopic brake rails
• Specially designed body with HPL drawers
• Internal frame system made of DKP profile with electrostatic powder coating
• Four caster wheels, two with brakes

Medication Storage Cart

• Antibacterial ABS material top tray
• Drawers with telescopic brake rails
• Specially designed body with HPL drawers
• Internal frame system made of DKP profile with electrostatic powder coating
• Four caster wheels, two with brakes

Dressing Cart

• Antibacterial ABS material top tray
• Drawers with telescopic brake rails
• Specially designed body with HPL drawers
• Internal frame system made of DKP profile with electrostatic powder coating
• Four caster wheels, two with brakes
• Waste bin

Hospital Beds

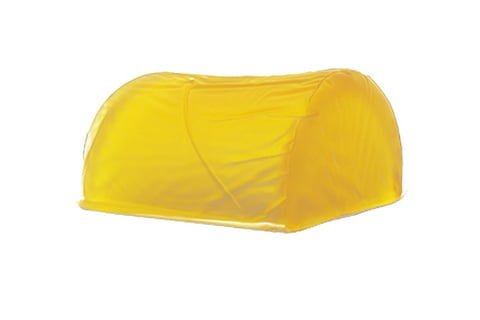

Dome Pad

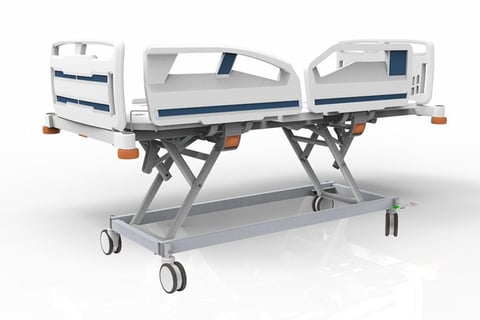

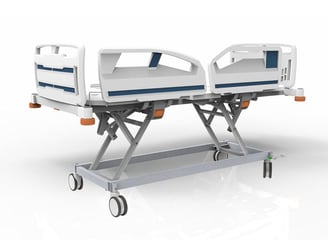

TTM YKA 06 Motorized Patient Care Beds

The TTM-YKA-06 Motorized Patient Care Bed is designed for advanced patient support, featuring Trendelenburg and reverse Trendelenburg functions (16º), electronic and manual CPR, and a compact laminate lying surface. It has four motors from DEWERT, LINAK, and MUKATECH (2000N-6000N, IPX6 DC), providing height, back, leg, Fowler, and cardiac positioning adjustments, controlled via a handheld remote. The polypropylene side rails include Trendelenburg and back angle indicators, while the ST37 carbon steel frame is coated with nano-technology electrostatic powder. The bed includes a high-density PU mattress (fluid and air-permeable), central locking wheels (Tente, Haion, Kama), and an IV pole with stainless steel tubing. With durability, safety, and precision engineering, it is an ideal solution for hospitals and intensive care units.

Pediatric Beds

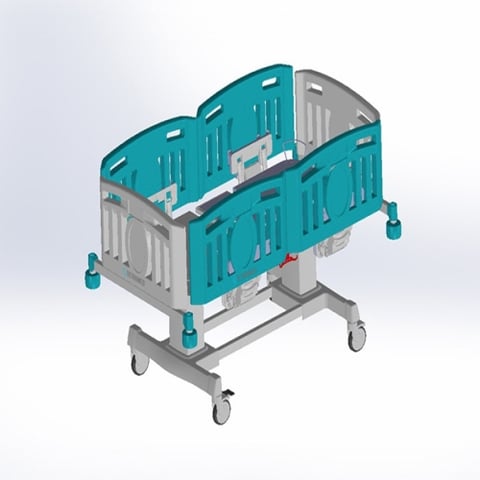

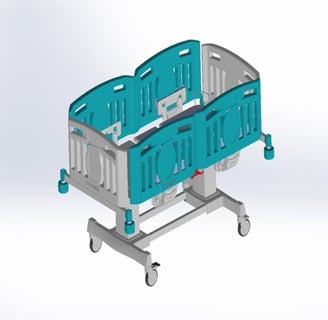

The TTM-CKA-40 Four-Motor Pediatric Patient Care Bed by TETRAMED is designed for pediatric care with advanced mobility and safety features, offering Trendelenburg (12º) and Reverse Trendelenburg (12º) functions, cardiac positioning, Fowler positioning, and height adjustment (48 cm - 88 cm). The bed includes a polypropylene headboard, four polypropylene side rails with integrated angle indicators and gas spring support, and a ST37 carbon steel frame (1.5-2mm) with electrostatic powder coating (40-micron thickness). The lying surface is made of ABS material, and the high-density PU mattress (28-density) is liquid and blood-resistant. It features manual and electronic CPR, four 150mm caster wheels (Haion, Tente) with a central brake system, and an IV pole (ST37 carbon steel with electrostatic powder coating, inner tube nickel-plated 21x1.5mm with four hooks). The bed operates with four motors from Bibus, Timotion, and Dewert (2000N-6000N, IPX4-IPX6, DC), supporting movements for backrest, footrest, Trendelenburg, height adjustment, and Fowler positioning, controlled via a hand remote and nurse control panel. Additional features include a drainage hook, manual knee adjustment, and accessory slots on all four corners of the bed. The bed is UBB-UTS registered (8683148691341) and is built with a compact, durable, and ergonomic design, making it an ideal choice for pediatric healthcare facilities.

TTM CKA 40 Motorized Patient Care Beds
